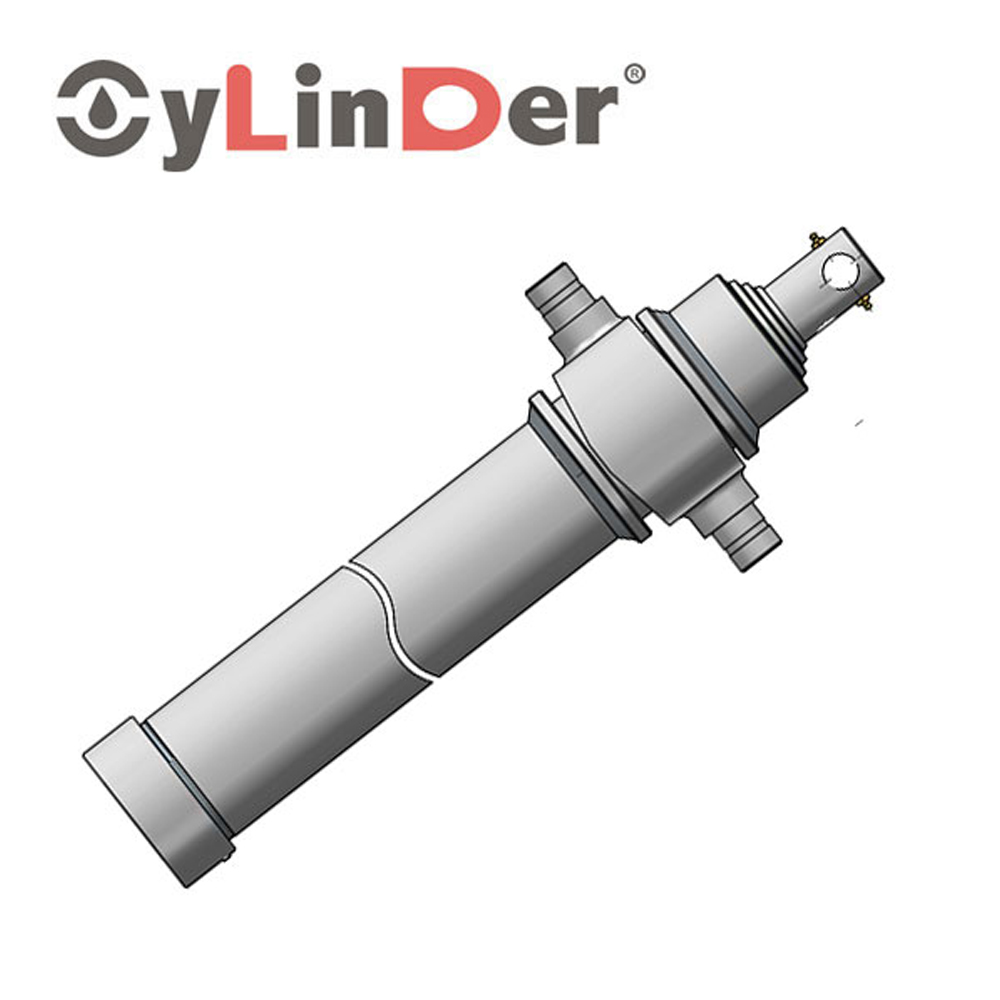

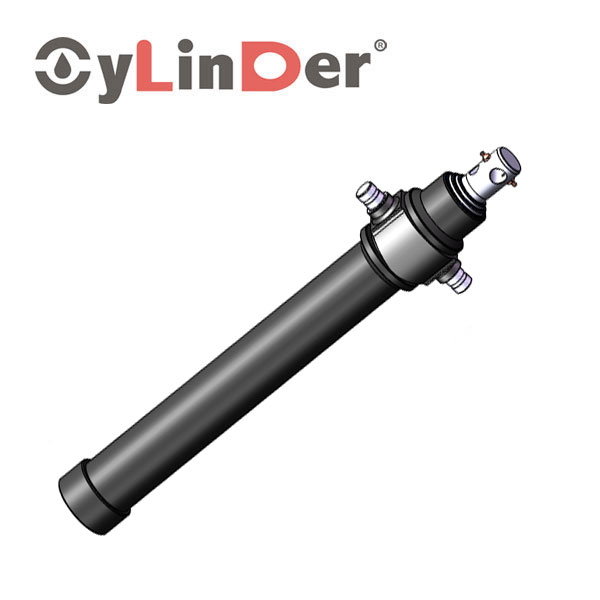

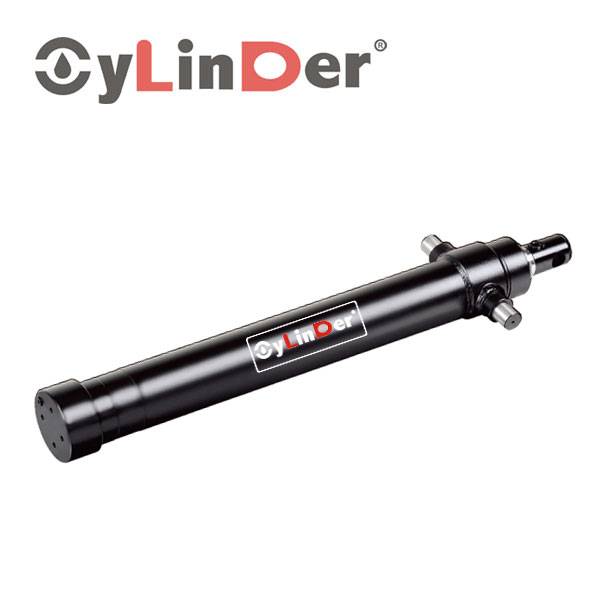

TC-Telescopic Cylinder

Quantity:

ADD TO CART PDF download

I agree with the terms and conditions

Tags:

125 customers are viewing this product

SPECIFICATION
MANUFACTURING
Factory introduction

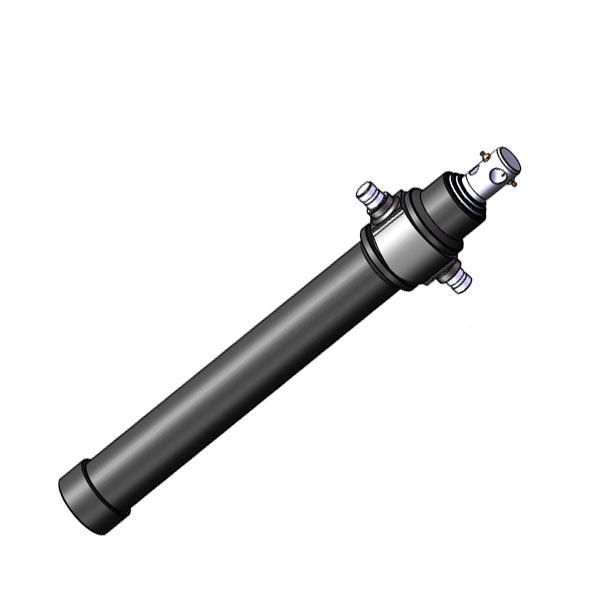

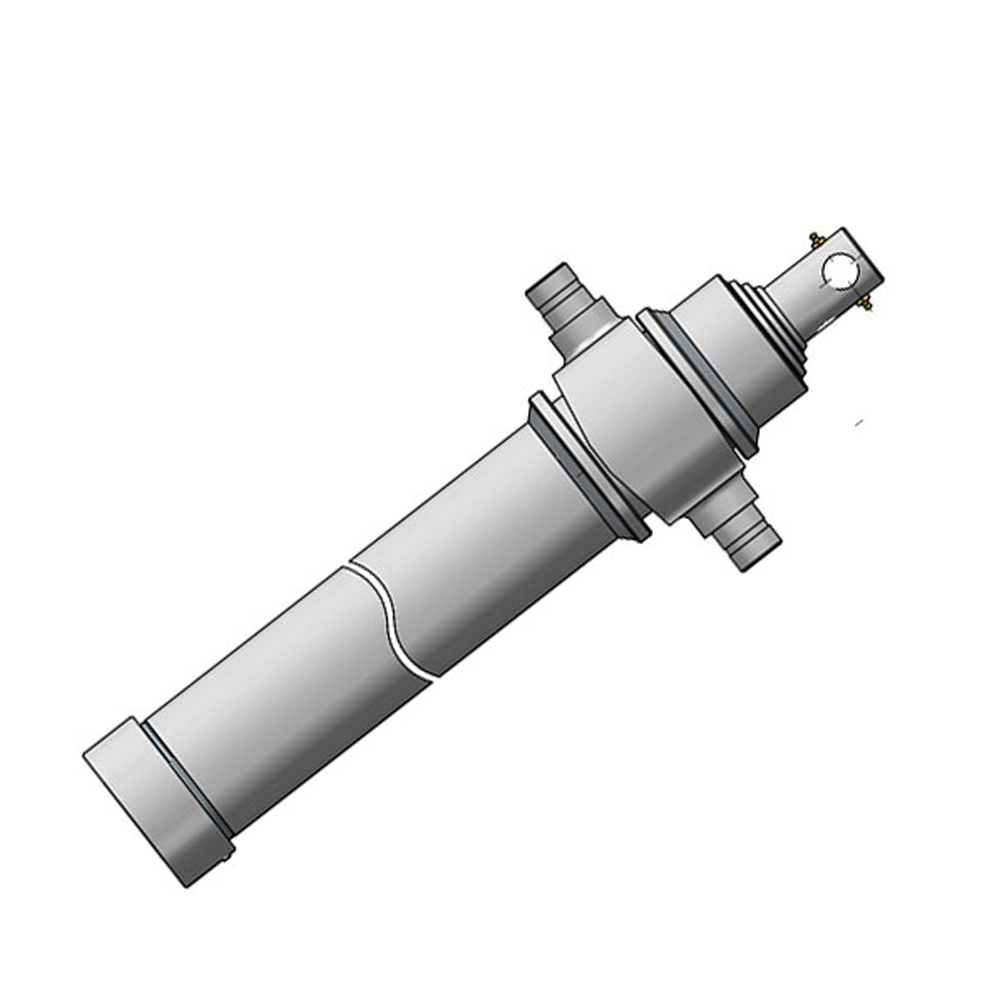

7 TONS-INVERTED TELESCOPIC CYLINDERS (2100 PSI MAX. WORKING PRESSURE)

PART NUMBER

CAPACITY

STROKE

OUTSIDE DIAMETER

A

B

C

D

E

F

G

H

I

J

PORT

WEIGHT(LBS)

TC7T-078-LD

7 TONS

78"

3.74"

35.50"

7.00"

1.00"

1.89"

1.015"

1.25"

2.10"

1.25"

9.00"

4.25"

SAE8

86

TC7T-090-LD

90"

3.74"

39.50"

94

TC7T-108-LD

108"

3.74"

45.50"

106

12 TONS-INVERTED TELESCOPIC CYLINDERS (2450 PSI MAX. WORKING PRESSURE)

PART NUMBER

CAPACITY

STROKE

OUTSIDE DIAMETER

A

B

C

D

E

F

G

H

I

J

PORT

WEIGHT(LBS)

TC12T-078-LD

12 TONS

78"

4.49"

34.75"

7.00"

1.00"

2.00"

1.015"

1.50"

2.10"

1.50"

10.50"

5.04"

SAE8

99

TC12T-090-LD

90"

4.49"

38.75"

109

TC12T-108-LD

108"

4.49"

48.75"

125

TC12T-120-LD

120"

4.49"

48.75"

138

TC12T-120L-LD

120"

4.49"

48.75"

13.00"

137

TC12T-132-LD

132"

4.49"

52.75"

157

TC12T-144-LD

144"

4.49"

56.75"

171

RETRACTED TOLERANCE ± 1/8"

TELESCOPIC ACCESSORIES
PART NUMBER	DESCRIPTION
TC-SB	BRACKET FOR 7 AND 12 TONS
TC-S07	BOX BRACKET KIT 7 TONS
TC-S12	BOX BRACKET KIT 12 TONS

7 TONS-INVERTED TELESCOPIC CYLINDERS (2100 PSI MAX. WORKING PRESSURE)

PART NUMBER

CAPACITY

STROKE

OUTSIDE DIAMETER

A

B

C

D

E

F

G

H

I

J

PORT

WEIGHT(LBS)

TC7T-078-LD

7 TONS

78"

3.74"

35.50"

7.00"

1.00"

1.89"

1.015"

1.25"

2.10"

1.25"

9.00"

4.25"

SAE-
08

86

TC7T-090-LD

90"

3.74"

39.50"

94

TC7T-108-LD

108"

3.74"

45.50"

106

12 TONS-INVERTED TELESCOPIC CYLINDERS (2450 PSI MAX. WORKING PRESSURE)

PART NUMBER

CAPACITY

STROKE

OUTSIDE DIAMETER

A

B

C

D

E

F

G

H

I

J

PORT

WEIGHT(LBS)

TC12T-078-LD

12 TONS

78"

4.49"

34.75"

7.00"

1.00"

2.00"

1.015"

1.50"

2.10"

1.50"

10.50"

5.04"

SAE-
0

99

TC12T-090-LD

90"

4.49"

38.75"

109

TC12T-108-LD

108"

4.49"

48.75"

125

TC12T-120-LD

120"

4.49"

48.75"

138

TC12T-120L-LD

120"

4.49"

48.75"

13.00"

137

TC12T-132-LD

132"

4.49"

52.75"

157

TC12T-144-LD

144"

4.49"

56.75"

171

RETRACTED TOLERANCE ± 1/8"

TELESCOPIC ACCESSORIES
PART NUMBER	DESCRIPTION
TC-SB	BRACKET FOR 7 AND 12 TONS
TC-S07	BOX BRACKET KIT 7 TONS
TC-S12	BOX BRACKET KIT 12 TONS
