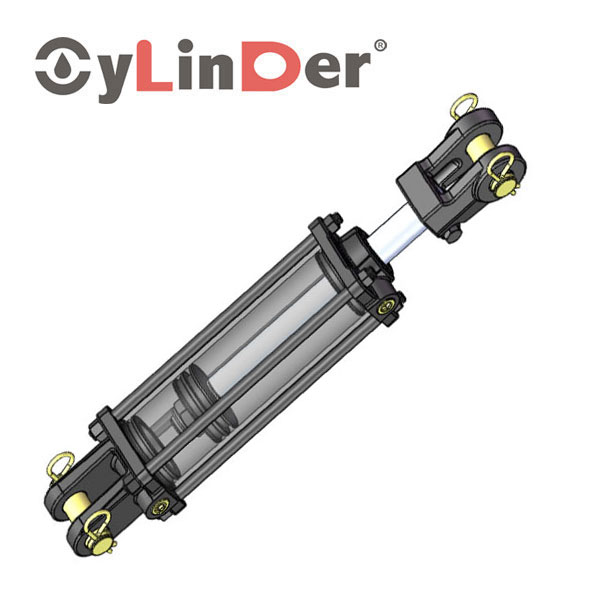

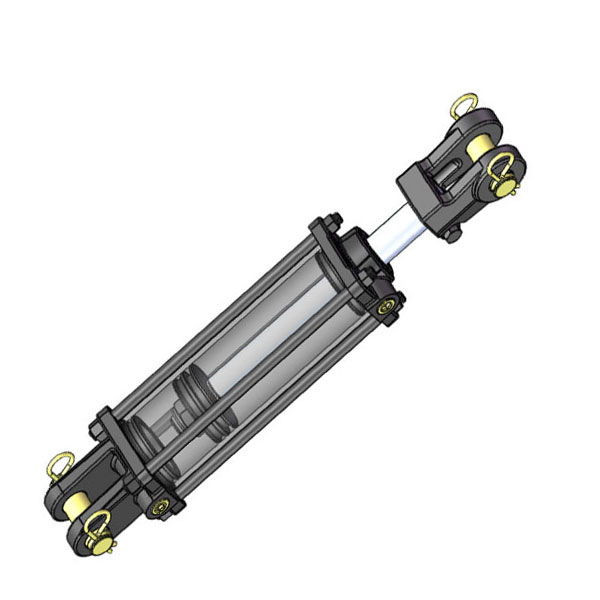

TR-Tie Rod Cylinder 2500 PSI
  • Bore Size
  • Rod Size
  • Oil Port
  • Intended Size
  • Stroke
  • Working Pressure / PSL
  • Size: TR
    Quantity:
  • I agree with the terms and conditions
  • Tags:
  • 125 customers are viewing this product
    • SPECIFICATION
    • MANVFACTURING
    • Factory introduction


    *All DIMENSIONS ARE INCHES.

    BORERODROD THREADPORTSABCDEFGHI
    2.00"1.125"1 1/8-12-UNF3/8 NPT10.25"M101.0"2.125"3.502"2.50"1.165”2.008"2.504"
    2.50"1.125"1 1/8-12-UNF3/8 NPT10.25"M101.0"2.125"3.502"2.50"1.165”2.008"2.504"
    3.00"1.25"1 1/4-12-UNF1/2 NPT10.25"M121.0"2.125"3.502"2.56"1.165”2.008"2.717"
    3.50"1.25"1 1/4-12-UNF1/2 NPT10.25"M141.0"2.125"3.502"2.56"1.165”2.008"2.717"
    4.00"1.25"1 1/4-12-UNF1/2 NPT10.25"M161.0"2.125"3.502"2.76"1.165”2.008"2.717"



     For 8.00" ASAE STROKE: A= 12.25"
     For 16.00" ASAE STROKE: A= 15.50" , C= 1.25"
     For TR2.5-3516-ASAE-LD,Rod diameter is 1.50”
     For TR2.5-4016-ASAE-LD, Rod diameter is 2.00”






    The LDTR 2500PSI Tie Rod Cylinders were designed in rugged agriculture applications that suitable used in any industry. Each cylinder undergoes rigorous testing for over 50,000 circles with 2500PSI equivalent load good reliabie quality ensures 2 Years Limited Warranty.


    *All numbers given are nominal values and should be used for reference only. All product specifications are subject to change without prior notice.


    2500PSI    TIE-ROD CYLINDER TYPE

    PART    NUMBERBORE & STROKEDIMENSIONSROD DIAMETERPIN SIZEPORTSCOLUMN LOADS(LBS)WEIGHT (LBS)
    RETRACTEDEXTENDED
    TR2.5-2004-LD2"×4"14 1/4"18 1/4"1 1/8"1"3/8 NPT785016
    TR2.5-2006-LD2"×6"16 1/4"22 1/4"785017
    TR2.5-2008-LD2"×8"18 1/4"26 1/4"785019
    TR2.5-2008-ASAE-LD2"×8"20 1/4"28 1/4"785020
    TR2.5-2010-LD2"×10"20 1/4"30 1/4"785020
    TR2.5-2012-LD2"×12"22 1/4"34 1/4"785022
    TR2.5-2014-LD2"×14"24 1/4"38 1/4"785024
    TR2.5-2016-LD2"×16"26 1/4"42 1/4"785025
    TR2.5-2016-ASAE-LD2"×16"31 1/2"47 1/2"785026.5
    TR2.5-2018-LD2"×18"28 1/4"46 1/4"785027
    TR2.5-2020-LD2"×20"30 1/4"50 1/4"695028
    TR2.5-2024-LD2"×24"34 1/4"58 1/4"518031
    TR2.5-2030-LD2"×30"40 1/4"70 1/4"357036
    TR2.5-2036-LD2"×36"46 1/4"82 1/4"261041
    TR2.5-2040-LD2"×40"50 1/4"90 1/4"170044
    TR2.5-2048-LD2"×48"58 1/4"106 1/4"157049
    TR2.5-2504-LD2.5"×4"14 1/4"18 1/4"1 1/8"1"3/8 NPT1220019
    TR2.5-2506-LD2.5"×6"16 1/4"22 1/4"1220021
    TR2.5-2508-LD2.5"×8"18 1/4"26 1/4"1220022
    TR2.5-2508-ASAE-LD2.5"×8"20 1/4"28 1/4"1220023
    TR2.5-2510-LD2.5"×10"20 1/4"30 1/4"1220024
    TR2.5-2512-LD2.5"×12"22 1/4"34 1/4"1220026
    TR2.5-2514-LD2.5"×14"24 1/4"38 1/4"1030028
    TR2.5-2516-LD2.5"×16"26 1/4"42 1/4"840029
    TR2.5-2516-ASAE-LD2.5"×16"31 1/2"47 1/2"840029.5
    TR2.5-2518-LD2.5"×18"28 1/4"46 1/4"700032
    TR2.5-2520-LD2.5"×20"30 1/4"50 1/4"590034
    TR2.5-2524-LD2.5"×24"34 1/4"58 1/4"440038
    TR2.5-2530-LD2.5"×30"40 1/4"70 1/4"1 1/4"440043
    TR2.5-2536-LD2.5"×36"46 1/4"82 1/4"340049
    TR2.5-2540-LD2.5"×40"50 1/4"90 1/4"270054
    TR2.5-2548-LD2.5"×48"58 1/4"106 1/4"200060
    TR2.5-3004-LD3"×4"14 1/4"18 1/4"1 1/4"  1760024
    TR2.5-3006-LD3"×6"16 1/4"22 1/4"1760026
    TR2.5-3008-LD3"×8"18 1/4"26 1/4"1760028
    TR2.5-3008-ASAE-LD3"×8"20 1/4"28 1/4"1760029
    TR2.5-3010-LD3"×10"20 1/4"30 1/4"1760030
    TR2.5-3012-LD3"×12"22 1/4"34 1/4"1760033
    TR2.5-3014-LD3"×14"24 1/4"38 1/4"1570035
    TR2.5-3016-LD3"×16"26 1/4"42 1/4"1280037
    TR2.5-3016-ASAE-LD3"×16"31 1/2"47 1/2"920042
    TR2.5-3018-LD3"×18"28 1/4"46 1/4"1130042
    TR2.5-3020-LD3"×20"30 1/4"50 1/4"920044
    TR2.5-3024-LD3"×24"34 1/4"58 1/4"670049
    TR2.5-3030-LD3"×30"40 1/4"70 1/4"1 1/2"960057
    TR2.5-3036-LD3"×36"46 1/4"82 1/4"700065
    TR2.5-3040-LD3"×40"50 1/4"90 1/4"570070
    TR2.5-3048-LD3"×48"58 1/4"106 1/4"390080
    TR2.5-3504-LD3.5"×4"14 1/4"18 1/4"1 1/4"1"1/2 NPT2400029
    TR2.5-3506-LD3.5"×6"16 1/4"22 1/4"2400032
    TR2.5-3508-LD3.5"×8"18 1/4"26 1/4"2400034
    TR2.5-3508-ASAE-LD3.5"×8"20 1/4"28 1/4"2400035
    TR2.5-3510-LD3.5"×10"20 1/4"30 1/4"2400037
    TR2.5-3512-LD3.5"×12"22 1/4"34 1/4"1960039
    TR2.5-3514-LD3.5"×14"24 1/4"38 1/4"1570042
    TR2.5-3516-LD3.5"×16"26 1/4"42 1/4"1280044
    TR2.5-3516-ASAE-LD3.5"×16"31 1/2"47 1/2"1 1/2"1 1/4”2110050
    TR2.5-3518-LD3.5"×18"28 1/4"46 1/4"1 1/4"1“1070047
    TR2.5-3520-LD3.5"×20"30 1/4"50 1/4"910049
    TR2.5-3524-LD3.5"×24"34 1/4"58 1/4"1 1/2"1400058
    TR2.5-3530-LD3.5"×30"40 1/4"70 1/4"960066
    TR2.5-3536-LD3.5"×36"46 1/4"82 1/4"700074
    TR2.5-3540-LD3.5"×40"50 1/4"90 1/4"580080
    TR2.5-3548-LD3.5"×48"58 1/4"106 1/4"390091
    TR2.5-4004-LD4"×4"14 1/4"18 1/4"1 1/2"1"1/2 NPT3140033
    TR2.5-4006-LD4"×6"16 1/4"22 1/4"3140036
    TR2.5-4008-LD4"×8"18 1/4"26 1/4"3140038
    TR2.5-4008-ASAE-LD4"×8"20 1/4"28 1/4"3140039
    TR2.5-4010-LD4"×10"20 1/4"30 1/4"3140041
    TR2.5-4012-LD4"×12"22 1/4"34 1/4"3140044
    TR2.5-4014-LD4"×14"24 1/4"38 1/4"3140046
    TR2.5-4016-LD4"×16"26 1/4"42 1/4"2670049
    TR2.5-4016-ASAE-LD4"×16"31 1/2"47 1/2"2"1 1/4”3140063
    TR2.5-4018-LD4"×18"28 1/4"46 1/4"1 1/2"1“2230055
    TR2.5-4020-LD4"×20"30 1/4"50 1/4"1880058
    TR2.5-4024-LD4"×24"34 1/4"58 1/4"1400064
    TR2.5-4024-175-LD4"×24"34 1/4"58 1/4"1 3/4"2600068
    TR2.5-4024-200-LD4"×24"34 1/4"58 1/4"2"3140073
    TR2.5-4030-LD4"×30"40 1/4"70 1/4"3050084
    TR2.5-4036-LD4"×36"46 1/4"82 1/4"2220095
    TR2.5-4040-LD4"×40"50 1/4"90 1/4"18200103
    TR2.5-4048-LD4"×48"58 1/4"106 1/4"13200118



    *All DIMENSIONS ARE INCHES.

    BORERODROD THREADPORTSABCDEFGHI
    2.00"1.125"1 1/8-12-UNF3/8 NPT10.25"M101.0"2.125"3.502"2.50"1.165”2.008"2.504"
    2.50"1.125"1 1/8-12-UNF3/8 NPT10.25"M101.0"2.125"3.502"2.50"1.165”2.008"2.504"
    3.00"1.25"1 1/4-12-UNF1/2 NPT10.25"M121.0"2.125"3.502"2.56"1.165”2.008"2.717"
    3.50"1.25"1 1/4-12-UNF1/2 NPT10.25"M141.0"2.125"3.502"2.56"1.165”2.008"2.717"
    4.00"1.25"1 1/4-12-UNF1/2 NPT10.25"M161.0"2.125"3.502"2.76"1.165”2.008"2.717"


     For 8.00" ASAE STROKE: A= 12.25"
     For 16.00" ASAE STROKE: A= 15.50" , C= 1.25"
     For TR2.5-3516-ASAE-LD,Rod diameter is 1.50”
     For TR2.5-4016-ASAE-LD, Rod diameter is 2.00”

    The LDTR 2500PSI Tie Rod Cylinders were designed in rugged agriculture applications that suitable used in any industry. Each cylinder undergoes rigorous testing for over 50,000 circles with 2500PSI equivalent load good reliabie quality ensures 2 Years Limited Warranty.

    *All numbers given are nominal values and should be used for reference only. All product specifications are subject to change without prior notice.


    2500PSI    TIE-ROD CYLINDER TYPE

    PART    NUMBERBORE & STROKEDIMENSIONSROD DIAMETERPIN SIZEPORTSCOLUMN LOADS(LBS)WEIGHT (LBS)
    RETRACTEDEXTENDED
    TR2.5-2004-LD2"×4"14 1/4"18 1/4"1 1/8"1"3/8 NPT785016
    TR2.5-2006-LD2"×6"16 1/4"22 1/4"785017
    TR2.5-2008-LD2"×8"18 1/4"26 1/4"785019
    TR2.5-2008-ASAE-LD2"×8"20 1/4"28 1/4"785020
    TR2.5-2010-LD2"×10"20 1/4"30 1/4"785020
    TR2.5-2012-LD2"×12"22 1/4"34 1/4"785022
    TR2.5-2014-LD2"×14"24 1/4"38 1/4"785024
    TR2.5-2016-LD2"×16"26 1/4"42 1/4"785025
    TR2.5-2016-ASAE-LD2"×16"31 1/2"47 1/2"785026.5
    TR2.5-2018-LD2"×18"28 1/4"46 1/4"785027
    TR2.5-2020-LD2"×20"30 1/4"50 1/4"695028
    TR2.5-2024-LD2"×24"34 1/4"58 1/4"518031
    TR2.5-2030-LD2"×30"40 1/4"70 1/4"357036
    TR2.5-2036-LD2"×36"46 1/4"82 1/4"261041
    TR2.5-2040-LD2"×40"50 1/4"90 1/4"170044
    TR2.5-2048-LD2"×48"58 1/4"106 1/4"157049
    TR2.5-2504-LD2.5"×4"14 1/4"18 1/4"1 1/8"1"3/8 NPT1220019
    TR2.5-2506-LD2.5"×6"16 1/4"22 1/4"1220021
    TR2.5-2508-LD2.5"×8"18 1/4"26 1/4"1220022
    TR2.5-2508-ASAE-LD2.5"×8"20 1/4"28 1/4"1220023
    TR2.5-2510-LD2.5"×10"20 1/4"30 1/4"1220024
    TR2.5-2512-LD2.5"×12"22 1/4"34 1/4"1220026
    TR2.5-2514-LD2.5"×14"24 1/4"38 1/4"1030028
    TR2.5-2516-LD2.5"×16"26 1/4"42 1/4"840029
    TR2.5-2516-ASAE-LD2.5"×16"31 1/2"47 1/2"840029.5
    TR2.5-2518-LD2.5"×18"28 1/4"46 1/4"700032
    TR2.5-2520-LD2.5"×20"30 1/4"50 1/4"590034
    TR2.5-2524-LD2.5"×24"34 1/4"58 1/4"440038
    TR2.5-2530-LD2.5"×30"40 1/4"70 1/4"1 1/4"440043
    TR2.5-2536-LD2.5"×36"46 1/4"82 1/4"340049
    TR2.5-2540-LD2.5"×40"50 1/4"90 1/4"270054
    TR2.5-2548-LD2.5"×48"58 1/4"106 1/4"200060
    TR2.5-3004-LD3"×4"14 1/4"18 1/4"1 1/4"  1760024
    TR2.5-3006-LD3"×6"16 1/4"22 1/4"1760026
    TR2.5-3008-LD3"×8"18 1/4"26 1/4"1760028
    TR2.5-3008-ASAE-LD3"×8"20 1/4"28 1/4"1760029
    TR2.5-3010-LD3"×10"20 1/4"30 1/4"1760030
    TR2.5-3012-LD3"×12"22 1/4"34 1/4"1760033
    TR2.5-3014-LD3"×14"24 1/4"38 1/4"1570035
    TR2.5-3016-LD3"×16"26 1/4"42 1/4"1280037
    TR2.5-3016-ASAE-LD3"×16"31 1/2"47 1/2"920042
    TR2.5-3018-LD3"×18"28 1/4"46 1/4"1130042
    TR2.5-3020-LD3"×20"30 1/4"50 1/4"920044
    TR2.5-3024-LD3"×24"34 1/4"58 1/4"670049
    TR2.5-3030-LD3"×30"40 1/4"70 1/4"1 1/2"960057
    TR2.5-3036-LD3"×36"46 1/4"82 1/4"700065
    TR2.5-3040-LD3"×40"50 1/4"90 1/4"570070
    TR2.5-3048-LD3"×48"58 1/4"106 1/4"390080
    TR2.5-3504-LD3.5"×4"14 1/4"18 1/4"1 1/4"1"1/2 NPT2400029
    TR2.5-3506-LD3.5"×6"16 1/4"22 1/4"2400032
    TR2.5-3508-LD3.5"×8"18 1/4"26 1/4"2400034
    TR2.5-3508-ASAE-LD3.5"×8"20 1/4"28 1/4"2400035
    TR2.5-3510-LD3.5"×10"20 1/4"30 1/4"2400037
    TR2.5-3512-LD3.5"×12"22 1/4"34 1/4"1960039
    TR2.5-3514-LD3.5"×14"24 1/4"38 1/4"1570042
    TR2.5-3516-LD3.5"×16"26 1/4"42 1/4"1280044
    TR2.5-3516-ASAE-LD3.5"×16"31 1/2"47 1/2"1 1/2"1 1/4”2110050
    TR2.5-3518-LD3.5"×18"28 1/4"46 1/4"1 1/4"1“1070047
    TR2.5-3520-LD3.5"×20"30 1/4"50 1/4"910049
    TR2.5-3524-LD3.5"×24"34 1/4"58 1/4"1 1/2"1400058
    TR2.5-3530-LD3.5"×30"40 1/4"70 1/4"960066
    TR2.5-3536-LD3.5"×36"46 1/4"82 1/4"700074
    TR2.5-3540-LD3.5"×40"50 1/4"90 1/4"580080
    TR2.5-3548-LD3.5"×48"58 1/4"106 1/4"390091
    TR2.5-4004-LD4"×4"14 1/4"18 1/4"1 1/2"1"1/2 NPT3140033
    TR2.5-4006-LD4"×6"16 1/4"22 1/4"3140036
    TR2.5-4008-LD4"×8"18 1/4"26 1/4"3140038
    TR2.5-4008-ASAE-LD4"×8"20 1/4"28 1/4"3140039
    TR2.5-4010-LD4"×10"20 1/4"30 1/4"3140041
    TR2.5-4012-LD4"×12"22 1/4"34 1/4"3140044
    TR2.5-4014-LD4"×14"24 1/4"38 1/4"3140046
    TR2.5-4016-LD4"×16"26 1/4"42 1/4"2670049
    TR2.5-4016-ASAE-LD4"×16"31 1/2"47 1/2"2"1 1/4”3140063
    TR2.5-4018-LD4"×18"28 1/4"46 1/4"1 1/2"1“2230055
    TR2.5-4020-LD4"×20"30 1/4"50 1/4"1880058
    TR2.5-4024-LD4"×24"34 1/4"58 1/4"1400064
    TR2.5-4024-175-LD4"×24"34 1/4"58 1/4"1 3/4"2600068
    TR2.5-4024-200-LD4"×24"34 1/4"58 1/4"2"3140073
    TR2.5-4030-LD4"×30"40 1/4"70 1/4"3050084
    TR2.5-4036-LD4"×36"46 1/4"82 1/4"2220095
    TR2.5-4040-LD4"×40"50 1/4"90 1/4"18200103
    TR2.5-4048-LD4"×48"58 1/4"106 1/4"13200118
