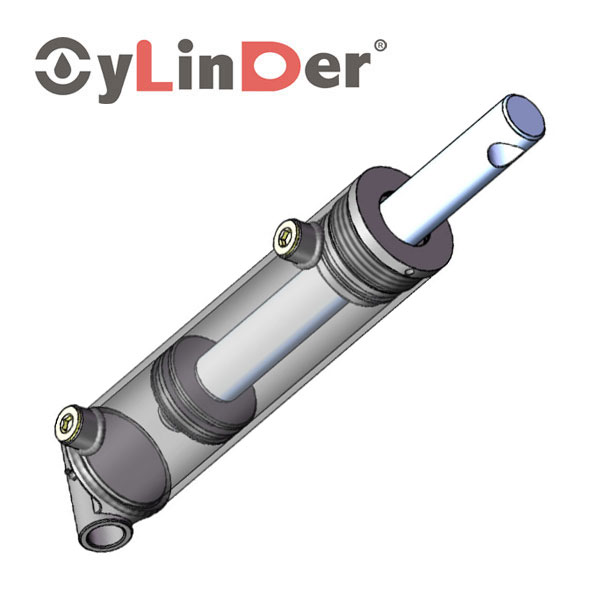

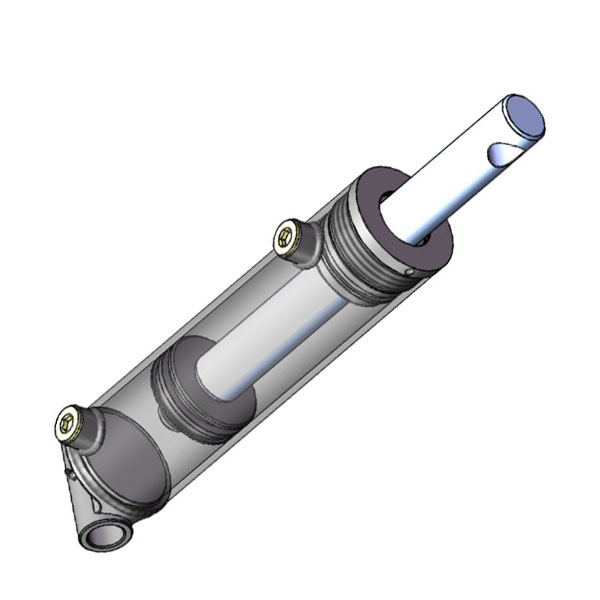

WR Series Cylinder

Bore Size

Rod Size

Oil Port

Intended Size

Stroke

Working Pressure / PSL

Size: TR

Quantity:

ADD TO CART PDF download

I agree with the terms and conditions

Tags:

125 customers are viewing this product

SPECIFICATION
MANUFACTURING
Factory introduction


*All DIMENSIONS ARE INCHES.

BORE

ROD

PORTS

A

B

C

D

E

F

G

H

I

J

1.50"

1.00"

SAE 6

7.00"

2.507"

0.625"

1.625"

0.64"

1.25"

2.00"

0.625"

0.865"

2.125"

2.00"

1.25"

SAE 8

8.00"

3.444"

0.75"

1.874"

0.765"

1.25"

2.50"

0.625"

0.995"

1.875"

2.50"

1.375"

SAE 8

8.00"

3.125"

0.75"

2.125"

0.765"

1.25"

3.00"

0.625"

1.125"

2.000"

3.00"

1.50"

SAE 8

8.00"

2.629"

1.0"

2.375"

1.015"

1.50"

3.50"

0.75"

1.18"

2.187"

3.50"

1.75"

SAE 8

8.00"

2.438"

1.0"

2.624"

1.015"

1.50"

4.00"

0.75"

1.25"

2.312"

4.00"

2.00"

SAE 8

9.00"

3.002"

1.0"

2.937"

1.265"

2.00

4.625"

1.00"

1.56"

2.185"

The LDWR 3000PSI Welded Rod Cylinders were designed for versatile function, the rod end comes with a drilled pin-hole which can easily be customized to fit your needed size. The demanding applications are suitable for construction and agricultural applications as well as other industries like OEM manufacturers of trailers, recycling equipment, etc. Each cylinder undergoes rigorous testing for over 50,000 circles with 3000PSI equivalent load. Good reliable quality ensures 2 Years Limited Warranty.
*All numbers given are nominal values and should be used for reference only. All product specifications are subject to change without prior notice.

DOUBLE ACTING-WELDED ROD TYPE

PART NUMBER	BORE & STROKE	DIMENSIONS		ROD DIAMETER	PIN SIZE	PORTS	COLUMN LOADS(LBS)	WEIGHT (LBS)
PART NUMBER	BORE & STROKE	RETRACTED	EXTENDED	ROD DIAMETER	PIN SIZE	PORTS	COLUMN LOADS(LBS)	WEIGHT (LBS)
WR-1504-LD	1.5"×4"	11"	15"	1"	5/8"	SAE 6	5300	7
WR-1506-LD	1.5"×6"	13"	19"				5300	8
WR-1508-LD	1.5"×8"	15"	23"				5300	9
WR-1510-LD	1.5"×10"	17"	27"				5300	11
WR-1512-LD	1.5"×12"	19"	31"				5300	12
WR-1514-LD	1.5"×14"	21"	35"				5300	13
WR-1516-LD	1.5"×16"	23"	39"				5300	14
WR-2004-LD	2"×4"	12"	16"	1 1/4"	3/4"	SAE 8	9400	11
WR-2006-LD	2"×6"	14"	20"				9400	12
WR-2008-LD	2"×8"	16"	24"				9400	14
WR-2010-LD	2"×10"	18"	28"				9400	16
WR-2012-LD	2"×12"	20"	32"				9400	17
WR-2014-LD	2"×14"	22"	36"				9400	19
WR-2016-LD	2"×16"	24"	40"				9400	21
WR-2018-LD	2"×18"	26"	44"				9400	22
WR-2020-LD	2"×20"	28"	48"				9400	24
WR-2024-LD	2"×24"	32"	56"				7300	27
WR-2028-LD	2"×28"	36"	64"				5600	31
WR-2030-LD	2"×30"	38"	68"				4900	33
WR-2032-LD	2"×32"	40"	72"				4400	34
WR-2036-LD	2"×36"	44"	80"				3500	38
WR-2040-LD	2"×40"	48"	88"				2900	41
WR-2042-LD	2"×42"	50"	92"				2700	43
WR-2048-LD	2"×48"	56"	104"				2100	48
WR-2060-LD	2"×60"	68"	128"				1400	58
WR-2072-LD	2"×72"	80"	152"				900	68
WR-2504-LD	2.5"×4"	12"	16"	1 3/8"	3/4"	SAE 8	14700	14
WR-2506-LD	2.5"×6"	14"	20"				14700	16
WR-2508-LD	2.5"×8"	16"	24"				14700	18
WR-2510-LD	2.5"×10"	18"	28"				14700	20
WR-2512-LD	2.5"×12"	20"	32"				14700	22
WR-2514-LD	2.5"×14"	22"	36"				14700	24
WR-2516-LD	2.5"×16"	24"	40"				14700	26
WR-2518-LD	2.5"×18"	26"	44"				14700	28
WR-2520-LD	2.5"×20"	28"	48"				14600	30
WR-2524-LD	2.5"×24"	32"	56"				10700	35
WR-2528-LD	2.5"×28"	36"	64"				8200	39
WR-2530-LD	2.5"×30"	38"	68"				7200	41
WR-2532-LD	2.5"×32"	40"	72"				6500	43
WR-2536-LD	2.5"×36"	44"	80"				5200	47
WR-2540-LD	2.5"×40"	48"	88"				4300	51
WR-2542-LD	2.5"×42"	50"	92"				3900	53
WR-2548-LD	2.5"×48"	56"	104"				3100	60
WR-2560-LD	2.5"×60"	68"	128"				2000	72
WR-3006-LD	3"×6"	14"	20"	1 1/2"	1"	SAE 8	21200	21
WR-3008-LD	3"×8"	16"	24"				21200	24
WR-3010-LD	3"×10"	18"	28"				21200	26
WR-3012-LD	3"×12"	20"	32"				21200	28
WR-3014-LD	3"×14"	22"	36"				21200	31
WR-3016-LD	3"×16"	24"	40"				21200	33
WR-3018-LD	3"×18"	26"	44"				21200	36
WR-3020-LD	3"×20"	28"	48"				20700	38
WR-3024-LD	3"×24"	32"	56"				15200	43
WR-3028-LD	3"×28"	36"	64"				11600	48
WR-3030-LD	3"×30"	38"	68"				10300	51
WR-3032-LD	3"×32"	40"	72"				9200	53
WR-3036-LD	3"×36"	44"	80"				7400	58
WR-3040-LD	3"×40"	48"	88"				6100	63
WR-3042-LD	3"×42"	50"	92"				5600	65
WR-3048-LD	3"×48"	56"	104"				4400	73
WR-3060-LD	3"×60"	68"	128"				2900	87
WR-3504-LD	3.5"×4"	12"	16"	1 3/4"	1"	SAE 8	28800	24
WR-3506-LD	3.5"×6"	14"	20"				28800	27
WR-3508-LD	3.5"×8"	16"	24"				28800	30
WR-3510-LD	3.5"×10"	18"	28"				28800	33
WR-3512-LD	3.5"×12"	20"	32"				28800	36
WR-3514-LD	3.5"×14"	22"	36"				28800	39
WR-3516-LD	3.5"×16"	24"	40"				28800	42
WR-3518-LD	3.5"×18"	26"	44"				28800	45
WR-3520-LD	3.5"×20"	28"	48"				28800	48
WR-3524-LD	3.5"×24"	32"	56"				28100	54
WR-3528-LD	3.5"×28"	36"	64"				21500	60
WR-3530-LD	3.5"×30"	38"	68"				19100	63
WR-3532-LD	3.5"×32"	40"	72"				17000	66
WR-3536-LD	3.5"×36"	44"	80"				13800	72
WR-3540-LD	3.5"×40"	48"	88"				11400	79
WR-3542-LD	3.5"×42"	50"	92"				10400	82
WR-3548-LD	3.5"×48"	56"	104"				8100	91
WR-4008-LD	4"×8"	17"	25"	2"	1 1/4"	SAE 8	37700	40
WR-4010-LD	4"×10"	19"	29"				37700	44
WR-4012-LD	4"×12"	21"	33"				37700	47
WR-4014-LD	4"×14"	23"	37"				37700	51
WR-4016-LD	4"×16"	25"	41"				37700	55
WR-4018-LD	4"×18"	27"	45"				37700	58
WR-4020-LD	4"×20"	29"	49"				37700	62
WR-4024-LD	4"×24"	33"	57"				37700	70
WR-4028-LD	4"×28"	37"	65"				35600	77
WR-4030-LD	4"×30"	39"	69"				31600	81
WR-4032-LD	4"×32"	41"	73"				28300	84
WR-4036-LD	4"×36"	45"	81"				22900	91
WR-4040-LD	4"×40"	49"	89"				19000	99
WR-4048-LD	4"×48"	57"	105"				13600	114
WR-4060-LD	4"×60"	69"	129"				9000	136
